OMEX Turbo Manifold Pressure Sensor (MAP)

The ECU needs an input of engine load. The Omex ECU can use an input of throttle position or manifold absolute pressure (MAP). Most normally aspirated engines will use an input of throttle position as this gives excellent throttle response. Forced induction engines need to use MAP as there is no direct relationship between throttle angle and engine load due to the variable of boost pressure. However, forced induction still requires throttle position sensor (TPS) input for idle condition and acceleration fuelling information. It is possible to also use TPS as the main load sensor with a boost compensation from the MAP sensor. The rating of MAP sensors is absolute, not boost pressure. Therefore a 2bar sensor is for up to 1bar boost and a 3bar for up to 2bar boost.

This is designed to be used with our OMEX powered Mazda MX-5 Turbo kit.

Please Note: This product has a short lead time of 7 - 10 days.

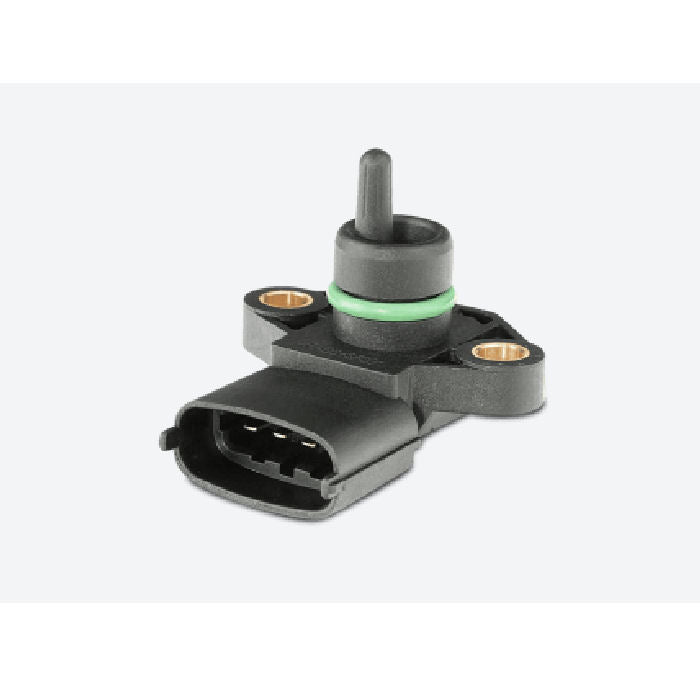

Also Note : This is a library image and the product delivered by look slightly different.
