Suzuki Hayabusa Dry Sump Oil Cooling Kit - Race Application

Suzuki Hayabusa Dry Sump Oil Cooling Kit for Road Application.

Location of Dry Sump catch tank is in the reduced size passenger footwell of the vehicle

This kit contains the following items :

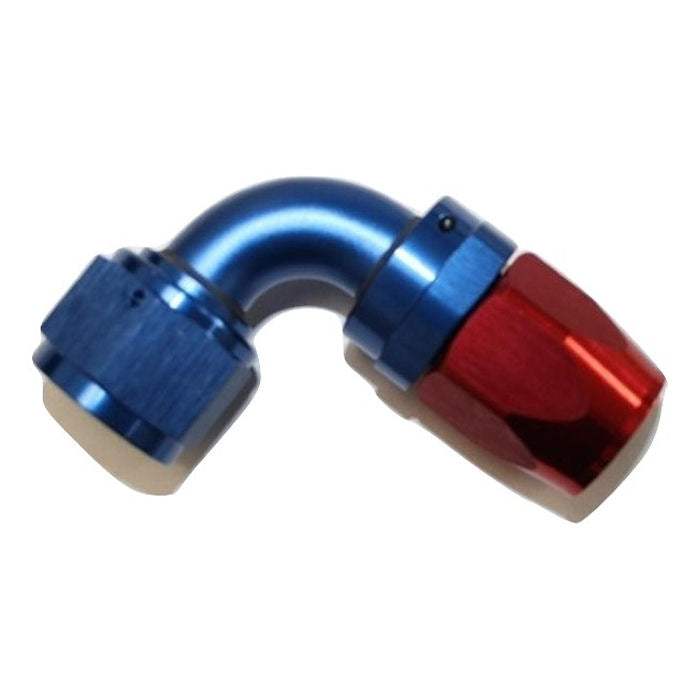

5x 90 degree AN-12 fittings

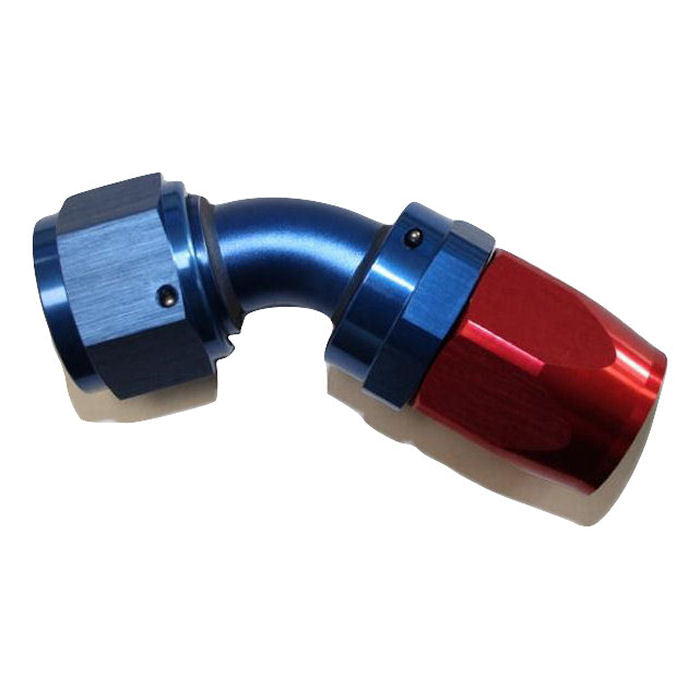

1x 45 degree AN-12 fittings

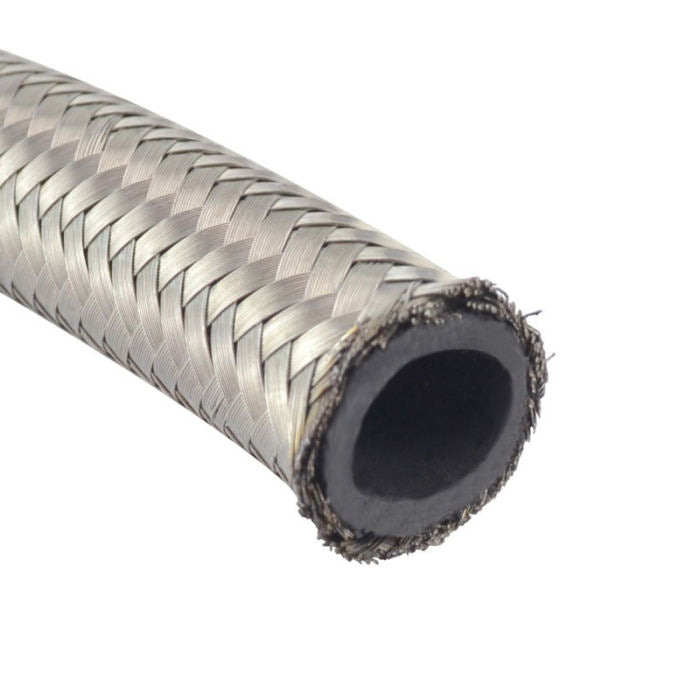

4m of braided oil hose

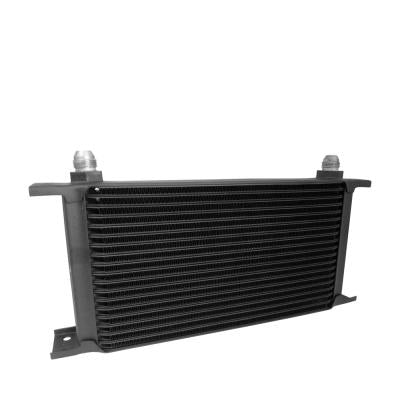

1x 19 row oil cooler

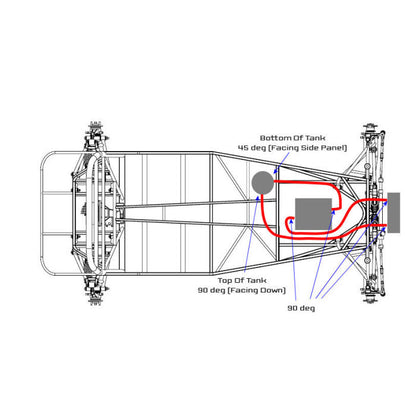

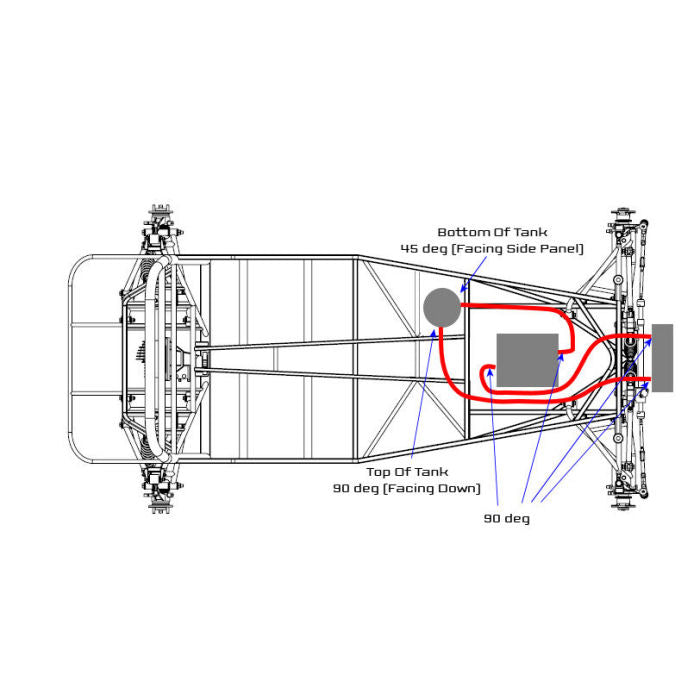

Please see the diagram for installation location and pipe work connectivity
