Deluxe Kit From £17,250 + Donor Car and Engine

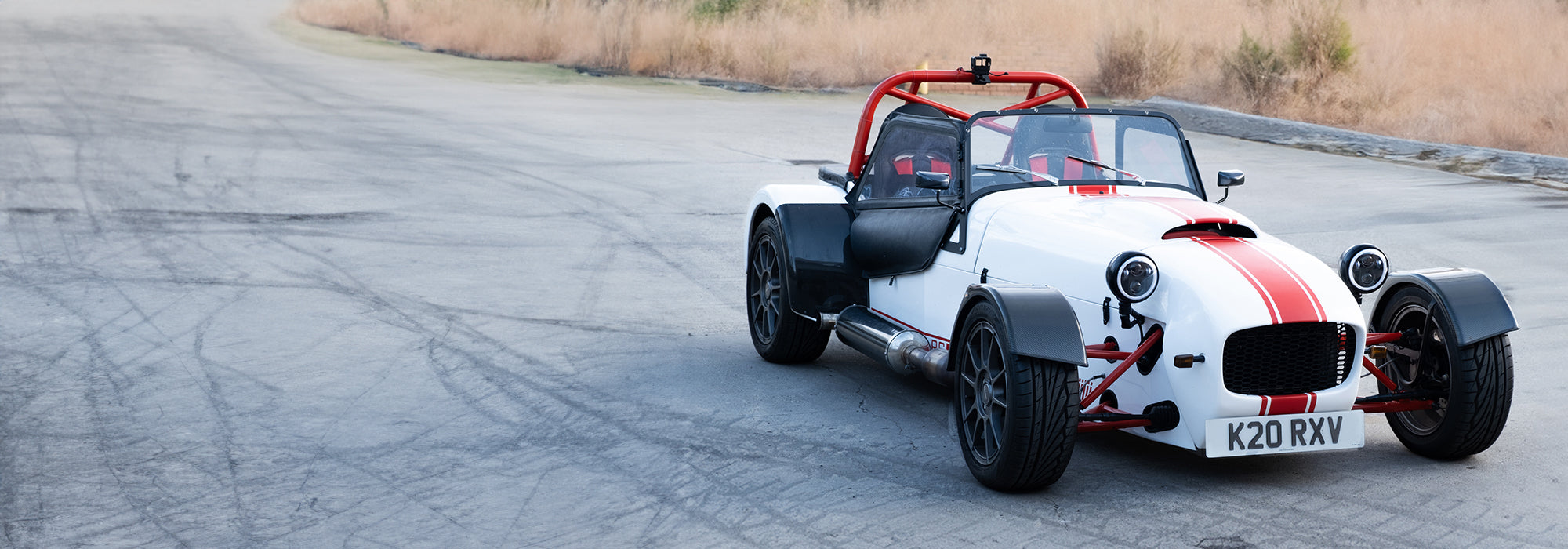

Built on the solid foundation of the single donor vehcle RX-5, the Indy RX-5 VTEC utilises the running gear from the Mazda / Miata MX-5 donor vehicle, but has our custom adapter plate and flywheel which allows the VTEC engine from a Honda Civic Type R EP3 model to seamlessly fit to the Mazda / Miata gearbox. Everything else about this model is the same as the RX-5, it's just the 230bhp naturally aspirated 2.0 VTEC engine that revs to 10,000rpm that's different.
Price will vary with inclusion of optional extras.
The RX-5 VTEC utilises all the Mazda running gear (brakes and uprights) and is powered by a fully programmable ECU. If you can't make up your mind to have a car or a bike engine, the RX-5 VTEC is certainly a package to consider. All the theatre of the bike engine, with a mechanical reverse and a little more weight up front.
Designed for both the road and the race track, the RX-5 VTEC is available in a multitude of colours and configurations from road spec with a windscreen and doors, to full track spec with an FIA approved roll cage.
In summary: An inexpensive, lightweight track day/race car with the potential for cruising to the south of France, or taking to the track and setting the fastest of lap times.
Collapsible content
What's Included In The Kit?
Overview
Square Tube RX-5 Chassis
X Brace Roll Over Bar
Engine & Gearbox
Honda Civic Type R EP3 2.0 (2003) 230 bhp *
5 or 6 Speed Gearbox *
Limited Slip Differential *
Trackday Stainless Exhaust Silencer
ME360 ECU
Immobiliser
Suspension, Brakes & Wheels
15" Wheels *
Independant Rear Suspension
Protech Single Adjustable Shocks
Mazda Front Brake Calipers *
Mazda Rear Brake Calipers *
2.4 Racing Quick Rack
Adjustable Wishbone Suspension
Exterior Specification
GRP Bodywork **
CSR GRP Front Wheel Arches / Fenders
50mm X Brace Roll Cver Bar (Bolt In)
Vinyl Boot Cover
Interior Specification
Analogue Dashboard Dials *
Black Aluminium Dashboard
Alloy Interior Panels
Black GRP High Sided Seats
Black Alloy Floor Pan
MK Branded 4 Point Seat Belt Harnesses
Billet Aluminium Brake Bias Pedal Box
Padded Centre Tunnel Top
What's Needed From Your Donor Car?
Mazda MX-5 mk 2 (1998 - 2000),
V5 Vehicle Registration Document
Gearbox,
Gear Lever,
Propshaft,
Differential,
Driveshafts,
Rear Uprights,
Rear Hubs,
Rear Calipers & Disks,
Handbrake Cable,
Handbrake Lever,
Upper & Lower Steering Column
Front Uprights,
Front Hubs,
Front Calipers & Disks,
Wheels & Tyres,
Bottom Ball joints & Steering Arms,
Horn,
Fuel Pump,
Fuel Filter,
Fuel Filter Bracket,
