Caterham

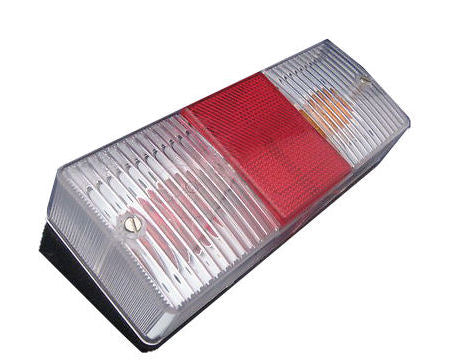

Caterham Style Rear Light Cluster Clear (Pair)
Caterham Style Rear Light Cluster Clear (Pair)
Caterham style rear light cluster (Pair) as shown in the pictures
They have an E marked on the lens.
These have the 20 degree angled rubber mounting plinth
Lamp has four wires with bullet connectors
Red Tail
Green Indicator
Green/Purple Stop
Black Earth
These lamps perform the following functions
Stop
Tail
Indicator
Reflector
The lamps and the rubber plinths are not handed
Please ensure you fit these correctly and use them correctly.
Kit consists
2 Rubber mounting plinths
2 Stop & Tail, Indicator, Reflector lamps
Technical Specification
Rubber Mounting Plinth
Construction: Rubber
Length: 191mm
Height: 75mm
Depth at highest point (Top side): 37mm
Depth at lowest point (Botton side): 6mm
Fixing to body are not provided
Lamps
Length: 190mm
Height: 72mm
Depth: 37mm
E marked
Bulbs fitted: YES
Connector system Bullet Connectors
please note delivery time on these is around 1 week
These are available in clear lens option also,
