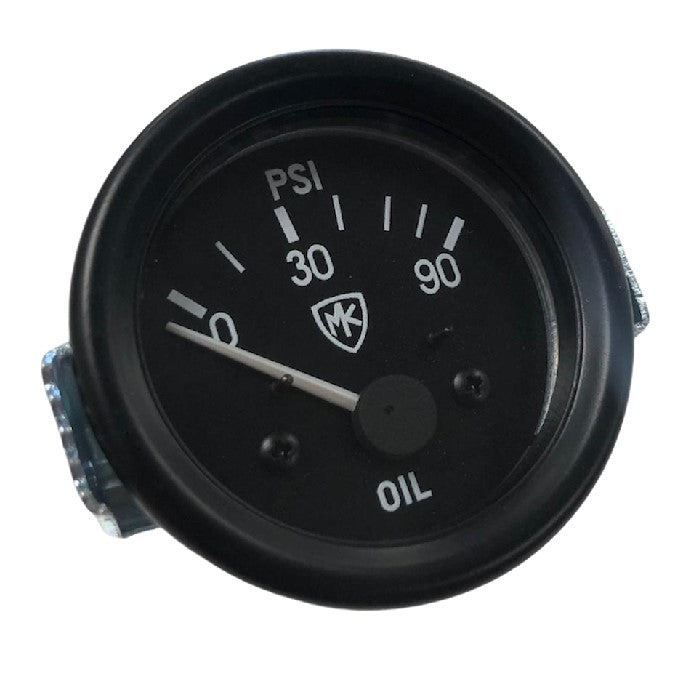

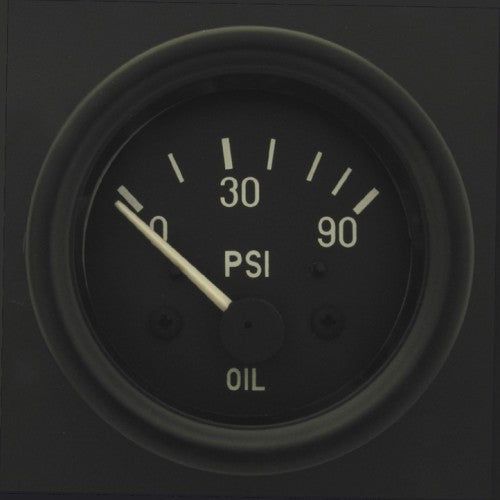

ETB Instruments Oil Pressure Gauge 52mm

ETB Instruments Oil Pressure Gauge 52mm

Regular price £39.98
Regular price Sale price £39.98
Sale Sold out
Tax included. Shipping calculated at checkout.
Bezel & Pointer Colour
Branding

Electrical oil pressure gauges indicate engine oil pressure in PSI (Pounds per square inch) and are marked in 15psi intervals. Each marking therefore approximately equates to 1 BAR, so 90psi is approximately equal to 6 BAR.

A matching ETB Pressure Sensor is required to provide the gauge with the correct input resistance.

The gauges are supplied a 'U'-shaped fixing bracket and thumb nuts along with a 12v /2w illumination bulb. Night illumination is classic white. The gauge size of 52mm denotes the outer diameter of the main body of the instrument and hence a 53mm to 54mm diameter hole is required in the dashboard.

Please Note : This product is made to order so lead times are between 14 and 21 days



Troubleshooting:

If +12v and earth is supplied to the gauge without sensor connected, the gauge will go full scale.

This is normal and will occur if:-

a) The sensor is disconnected

b) The sensor is not earthed properly via its thread (Do NOT use PTFE tape!)

c) There is a break in the wire between the G terminal on the sensor and the T terminal on the gauge

d) The connections on these terminals are bad
