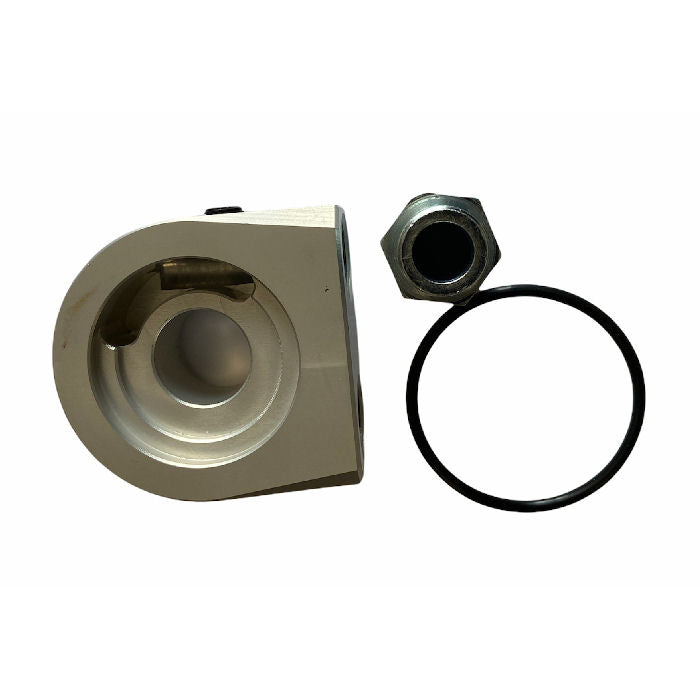

Honda CBR 1000RR Oil Filter Cooler Sandwich Plate With M22 x 1.5 Outlet Port

Oil filter sandwich plate to allow a remote oil filter or connection to the oil cooler.  This sandwich plate is fitted between the oil filter and the block, a mushroom cap is not required for this installation.

Simply blank off the two water hoses on the OEM filter housing, and fit the sandwich plate making sure to fit the M22 to JIC10 male to male adapters for your JIC 10 oil cooler.

Thread suitable for Honda powered vehicle

Cast aluminium construction

M22 Female Ports

The diameter of the sealing ring is 60mm.

Sandwich plate comes with 2 x 1/8NPT threaded inserts for oil pressure and temperature senders which come with blanking plugs installed.

Please Note : This is a special order item and the lead time can be 7 - 10 days
