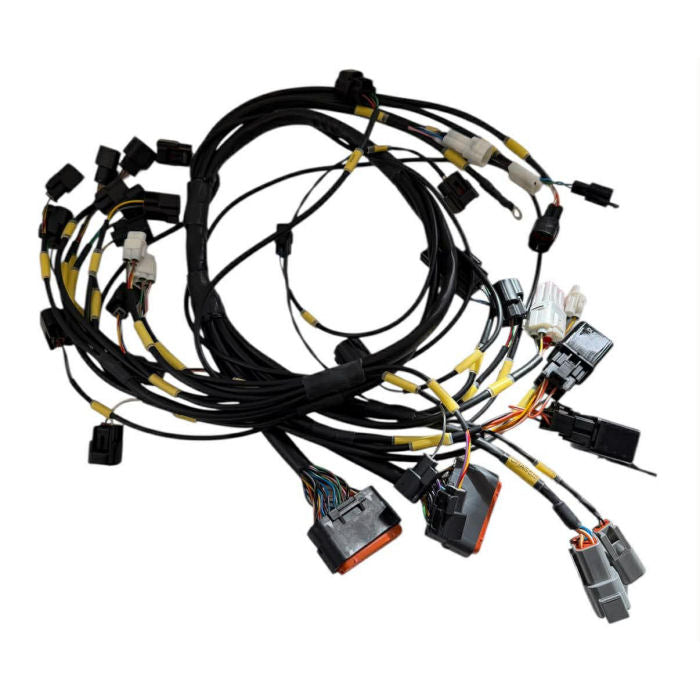

Suzuki Hayabusa Gen 2 Engine Loom For Stock ECU

Engine wiring loom for a gen 2 Hayabusa for use with the stock ECU.

This is a motorsport grade loom which has controls for the fan, fuel pump, built into it.

Master chassis harness is an 8 pin DTM housing.  Wiring diagram for the chassis connector can be found here.
