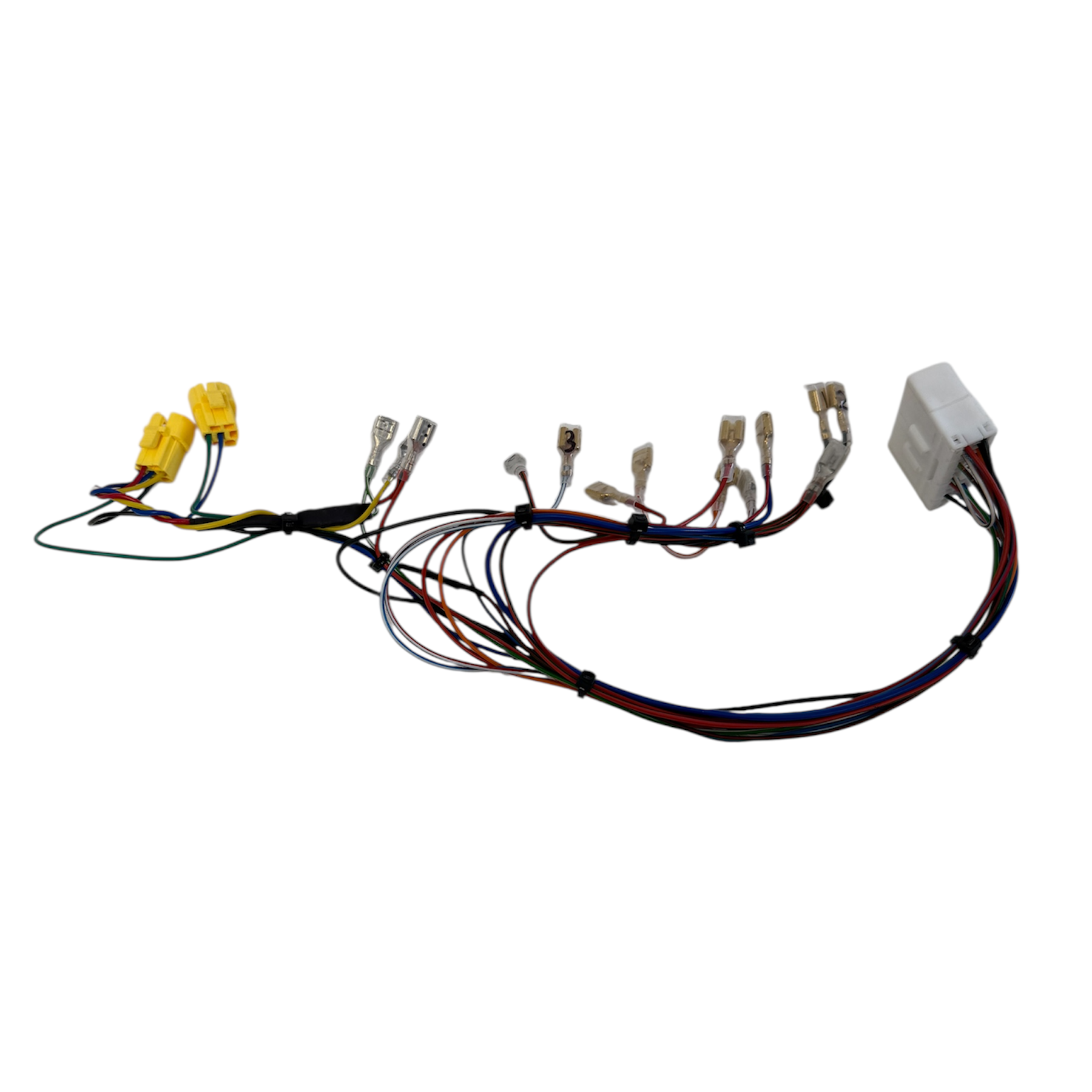

Toggle Switches to Chassis Loom Wiring Sub Harness

Designed for seamless integration into the universal chassis harness, this loom will allow you to control the lights, hazards, fog light, indicators and horn when connected to the motorsport toggle switches.

Used on the CUP 200 Road

Note: The dashboard switches will need to be positioned in a specific order for this to work correctly.

From left to right on the dashboard, the following switches need to be installed.

Fog Light - Momentary
Side / Dip - 2 Stage Latching
Ignition / Start - 2 Stage on / spring
Main Beam - Latching
Indicator (on - off - on)

16mm Push Button Switches (Top to Bottom next to the dashboard)

Hazard - Latching
Horn - Momentary
