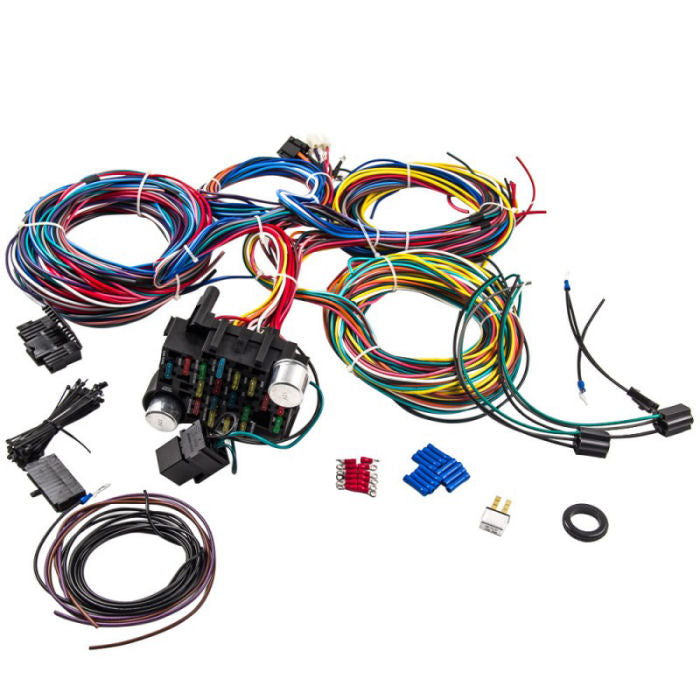

Universal 21 Circuit Wiring Module And Wiring Harness

The Heart of a custom loom for your car. Vehicle wiring doesn't get a lot easier than this.

The difficult bit is already done for you. Correct rating fuses on all circuits. Indicator and Hazard flasher relays. Horn relay. Fan relay. Pre-drilled aluminium mounting plate.

Easy to follow instructions and diagrams. Just mount the module under your dash or in your engine bay and run the correct size cables from your ancillaries and switches to the unit's screw terminals.

DIY wiring doesn't get simpler than this

17 fuses (For Radio, Coil, Dome Light, Horn, Cigarette Lighter, AC/Heat, backup/Cruise, Fuel Pump, audio, Turn Signal, Horn, Air Con, Wiper, Gauges, Hazard, Fan, Power Window, Power Door Locks, Brake & Headlights

21 circuits

Circuit examples are : Horn Relay and Connector, Turn and Hazard Signals, Circuit Breaker for Headlights, 2 Flashers, 1 Alternator Plug, 2 Ignition Switch Connectors

Wiring Diagram and manual available here : Universal 21 Circuit Downloadable Manual
